Prec-5in-Sho-ike Dome










The Prec-5in-Sho-ike Dome is specially designed for use with the Sigma 15mm and Nikon 16mm very wide, fisheye lenses.

The nodal point for each of these lenses is very close to the camera. So close, in fact, that even using the shortest ikelite port body results in vignetting (dark corners because the lens is seeing the port body).

Our design for the Prec-5in-Sho-ike is different from the other Precision 5 Domes so that it does not vignette with full frame or cropped frame cameras. This was accomplished by integrating the port body into the dome. Because of the short distance between the housing and the dome, the shade has also been integrated into the assembly.

Because the port is already a part of the dome, it is not compatible with the ikelite modular system and a tele-converter cannot be used.

Your Lens Our Dome Normal Port Options Port with 1.4 Tele-Converter
Nikkor 16mm f/2.8 AF Fisheye Prec-5in-Sho-ike Included Prec-5in-Tok-ike Dome  + UWCS-Port / 5510.10 / 5510.11
Sigma 15mm f/2.8 EX DG Fisheye Prec-5in-Sho-ike Included Prec-5in-Tok-ike Dome + UWCS-Port / 5510.10 / 5510.11



Here are some pictures of the Precision Prec-5in-Sho-ike Dome

Mouse over the pictures for a larger image

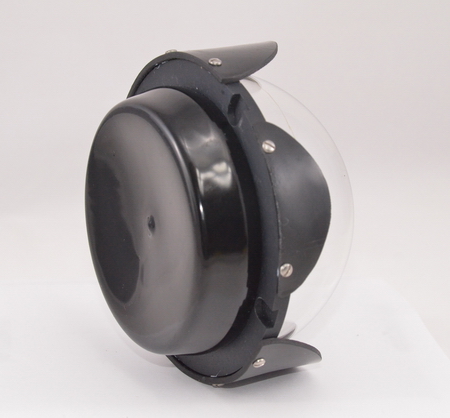

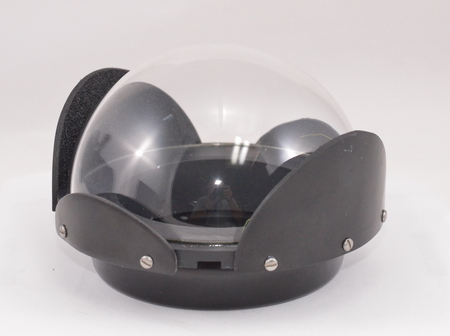

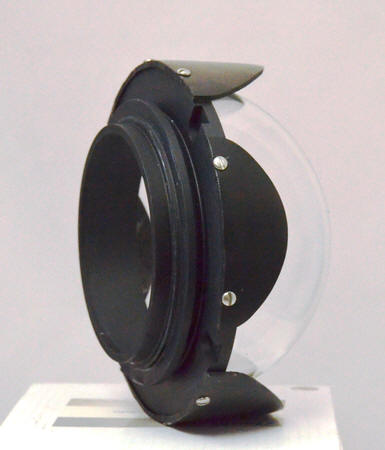

     Dome Front                           Dome Back                         Dome on housing





Precision Prec-5in-Sho-ike Dome

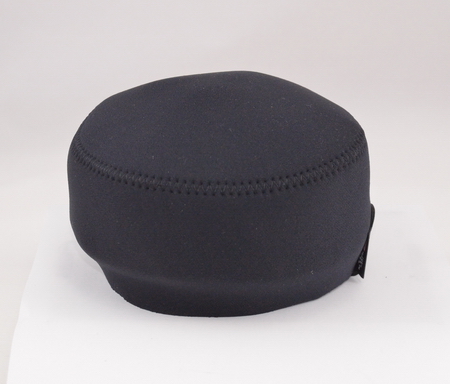

with neoprene cover                      and dust cap





Precision Prec-5in-Sho-ike Dome  ................................................................................................................. $495 USD

Also Included: Port-to-Housing O-ring, Dust Cap (to protect interior of dome), Neoprene Cover (to protect dome exterior)

If you are interested in purchasing a Precision 5" Dome, please send an email to Info@UWCameraStuff.com listing:

            1. The item(s) you desire

            2. Your contact information
                    -  Name
                    -  Address
                    -  Email address
                    -  Phone number


Once your selections are confirmed and actual shipping costs are calculated, payment can be made in U.S. Dollars via PayPal or Money Order (USPS or International).

Last revised 04/22/2015 02:10:35 PM
